Name: Launch X-431 IV
Description:

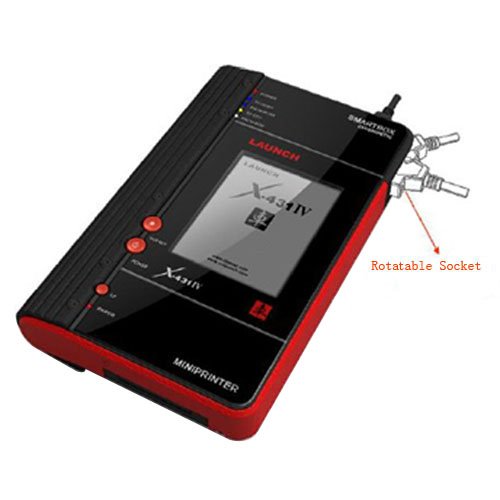

2013 latest Launch X431 IV is an classic, economic, simple, steady vehicle diagnostic tool newly released by Launch company. It follows the open platform of X431 series, also it inherits many advantages of X431 including a wide coverage of vehicle models, powerful testing functions and accurate test data. At the same time, the innovative rotatable diagnostic connector design is convenient for users' operating. It is a cost-effective diagnostic product on the market.
Features:
Diagnostic Functions: trouble diagnosis of automotive ECUs; (read trouble code, clear trouble code, read data stream and special features), the diagnostic software completely consistent with that of X431, fully inherited the advantages of X431 including wide coverage of vehicle models and high precision test;
PDA Functions: (handwriting with stylus, personal data management, English-Chinese dictionary, etc.);
Optional Functions: creation of repair files and access to maintenance data);
Mini Printer (can be used with X431 PCCENTER to connect to the computer for storage of vehicle test data.
Specifications:
Operating System: LINUX operating platform
Memory: 16M
CF Card: 1G
Host Power Supply: DC 12V
Host Power: about 9W
Printer: Mini high-speed thermal printer
Display: large 240*320 touch inductive LCD screen with backlight
Ambient Temperature: -10 - 55
Relative Humidity: <90%

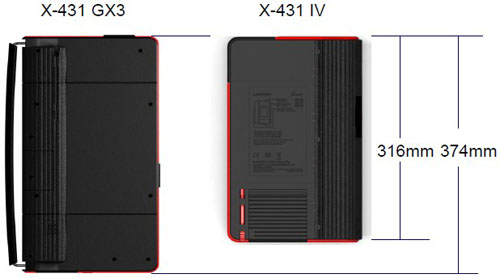

Dimension: 19*316*55.5mm
Supported Car List:
Demo, Smart diagnostic software, Smart OBD-II
America: America Ford, Chrysler, GM, Acura, Infiniti, Lexus
Australia: Australia Ford, Holden
Brazil: Brazil GM
India: Indonesia Daihatsu, Indonesia Suzuki, Mahindra, Maruti, Tata
Japan: Daihatsu, Honda, JP Isuzu, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
Europe: Audi, Benz, BMW, Citroen, Europe Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot, Porsche, Renault, Romeo, Rover, Saab, Seat, Skoda, Transporter & V-Class, Volkswagen, Volvo
China: Brilliance, BYD, Changan, Changcheng, Changhe, Chery, Geely, Gonow, HaFei, JAC, Jiangling, SGMW, Tianjin, Xiamen Golden, Xinkai, Zhongshun, Zhongxing, Zotye
Korea: Daewoo, Hyundai, Kia, Ssangyong
Malaysia: Perodua, Proton
Russia: GAZ, VAZ
South Africa: South Africa Opel
Thailand: Thailand Isuzu

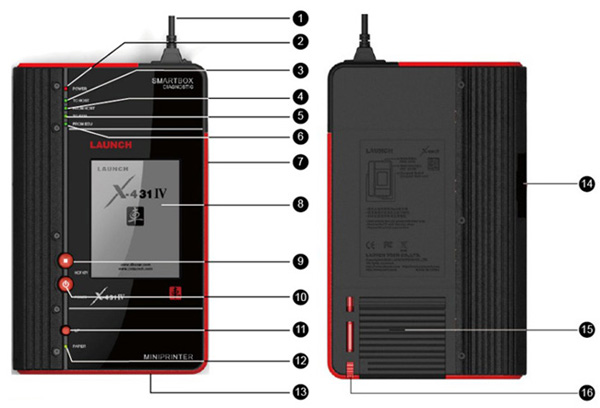

1. Diagnostic connector (rotatable)
2. SmartBox power indicator
3. Indicator to show SmartBox sending data to the main unit
4. Indicator to show SmartBox receiving data from the main unit
5. Indicator to show SmartBox sending data to ECU
6. Indicator to show SmartBox receiving data from ECU
7. Serial port (to connect with PCLINK for extending functions)
8. Touch screen
9. Hotkey button
10. Power button
11. Printer LF button (paper feed)
12. Printer ready indicator
13. Paper out (printed the data)
14. CF card slot (to install CF card)
15. Printer cover (to install printing paper)
16. Stylus slot (to place the stylus)

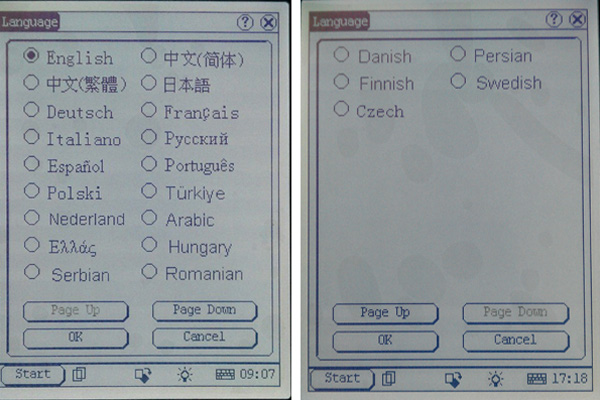

X431 IV Operation Menu Languages:
|
